Webb Wheel Drum Detail

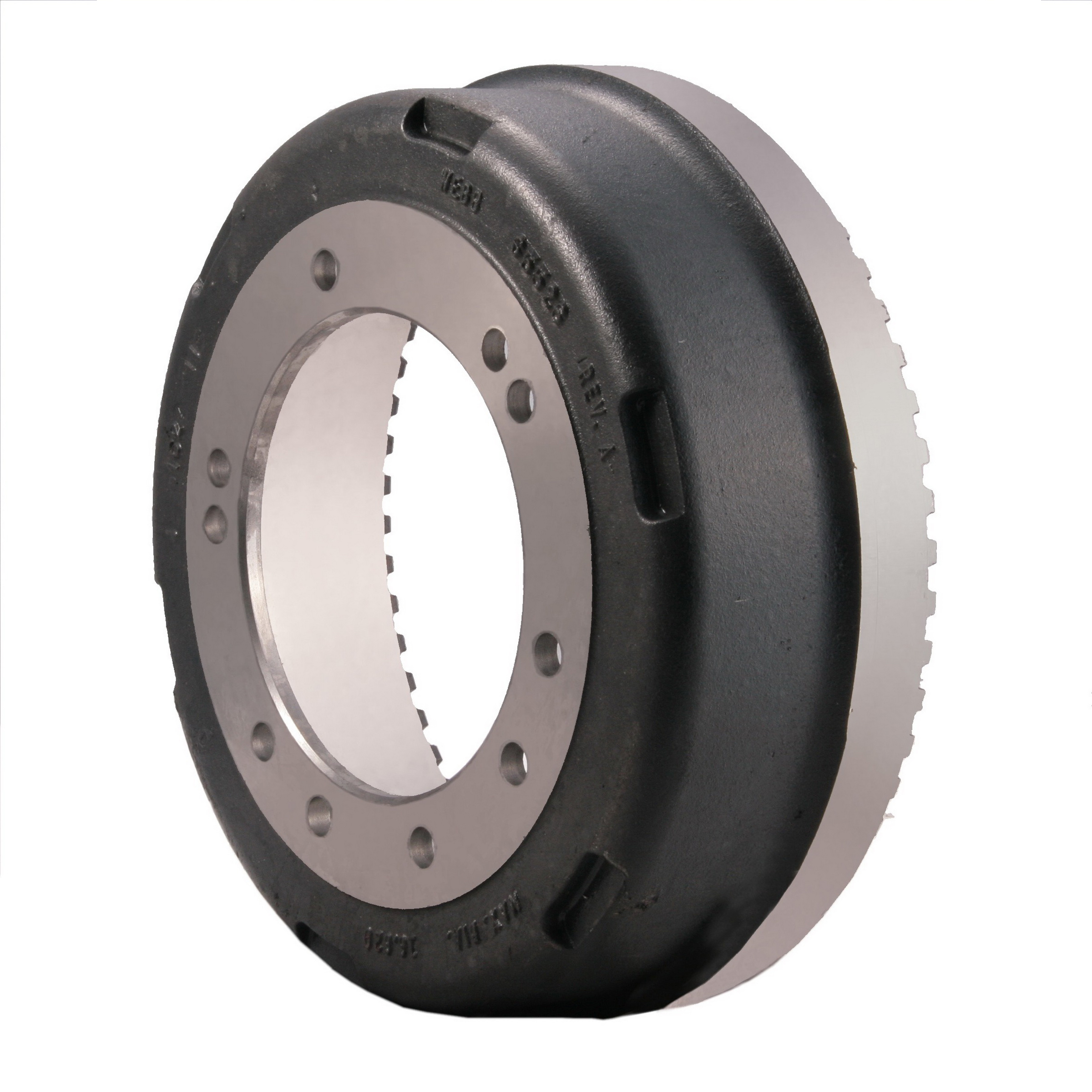

65526B photo

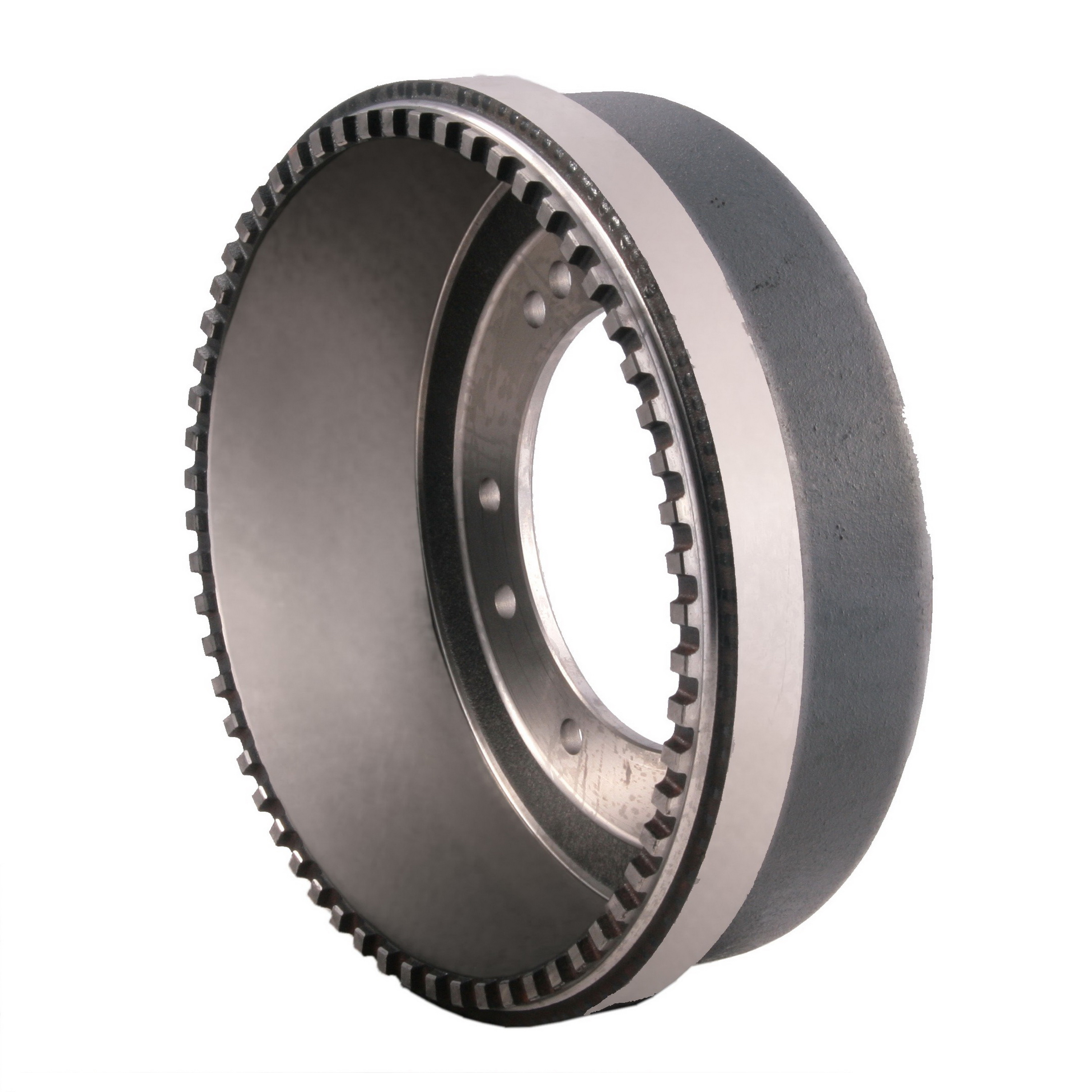

65526B photo

drum art

DRUM INFORMATION
Drum Part Number: 65526B
Weight: 81
Brake Shoe Width: 5"
Back Plate Thickness: 0.50
Drum Type:
A photo
Mount: Inboard
Brake Surface Diameter: 16.50
Overall Depth: 6.30
Brake Surface Flat: 5.59
Pilot Diameter: 9.25
Bolt Circle Diameter: 11.25
Bolt Hole (Number): 5 or 6
Bolt Hole Size: 0.78
Maximum Wear Diameter: 16.62
Notes: Notched
