Webb Wheel Drum Detail

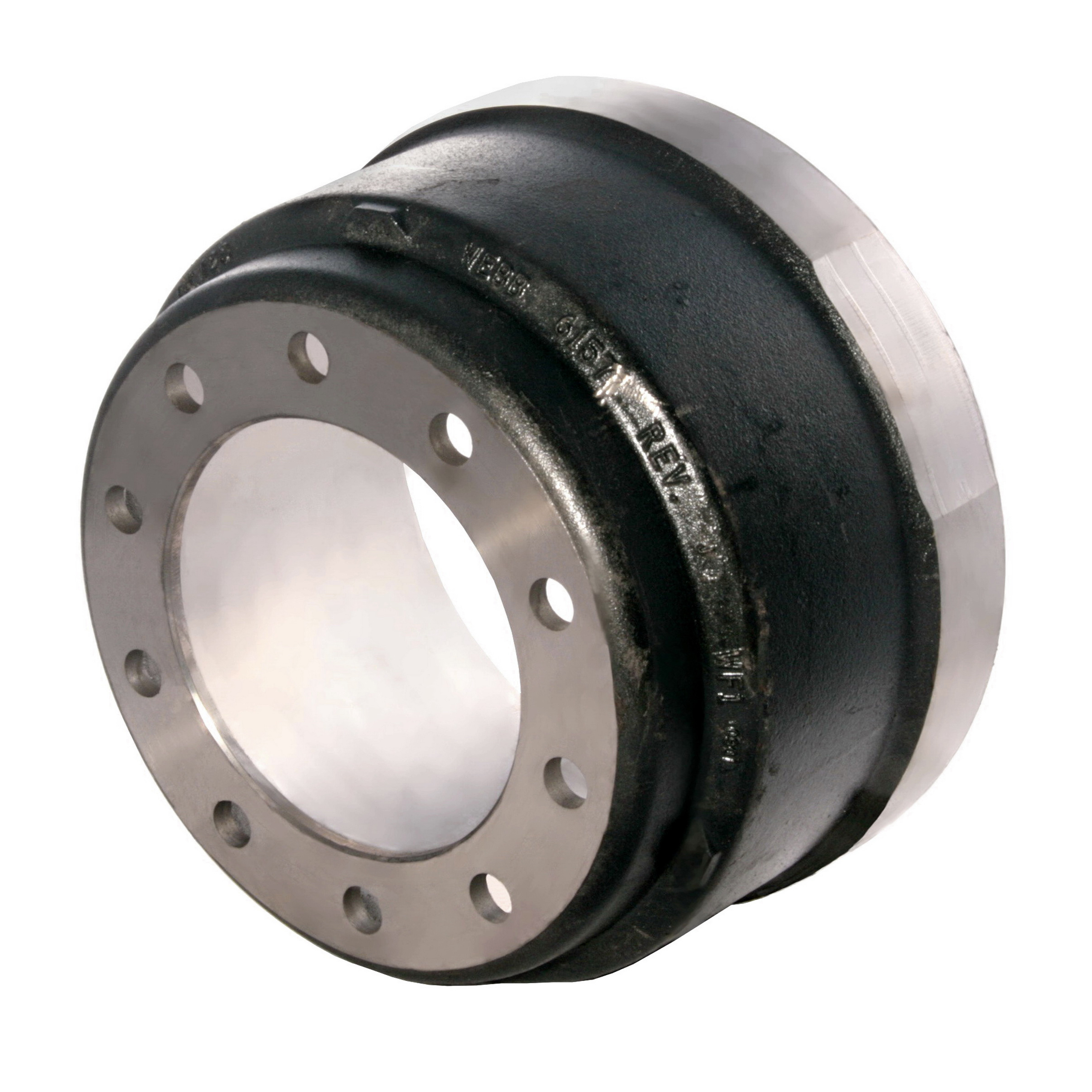

DRUM INFORMATION
Drum Part Number: 61577B
Weight: 107
Brake Shoe Width: 7
Back Plate Thickness: 0.50
Drum Type:
Mount: Outboard
Brake Surface Diameter: 15.00
Overall Depth: 10.59
Brake Surface Flat: 7.75
Pilot Diameter: 8.78
Bolt Circle Diameter: 11.25
Bolt Hole (Number): 10
Bolt Hole Size: 1.00
Maximum Wear Diameter: 15.12
Notes:
