Webb Wheel Drum Detail

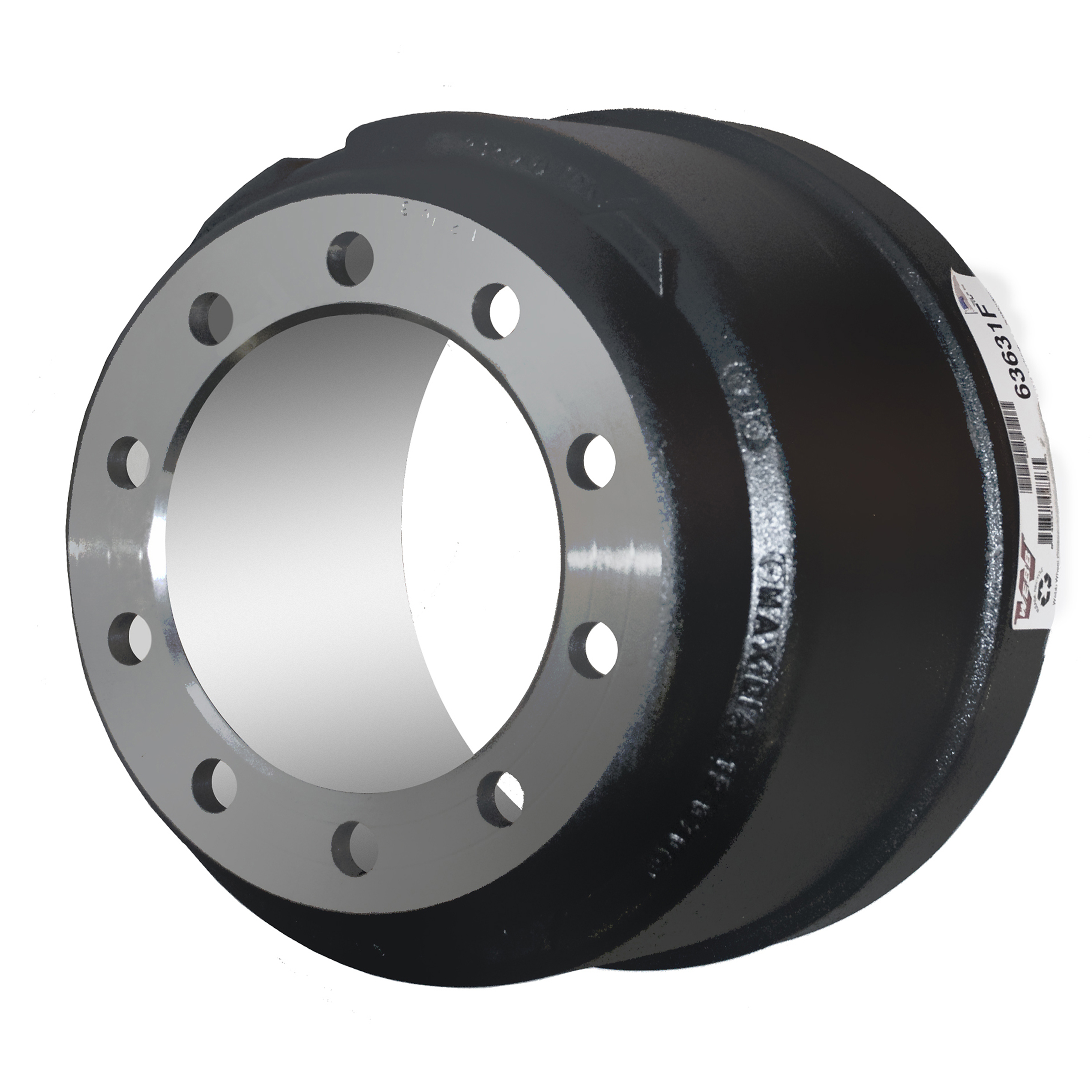

63631F photo

drum art

DRUM INFORMATION
Drum Part Number: 63631F
Weight: 81
Brake Shoe Width: 7.5"
Back Plate Thickness: 0.50
Drum Type:
H photo
Mount: Inboard
Brake Surface Diameter: 12.25
Overall Depth: 10.47
Brake Surface Flat: 8.12
Pilot Diameter: 7.12
Bolt Circle Diameter: 8.75
Bolt Hole (Number): 10
Bolt Hole Size: 0.81
Maximum Wear Diameter: 12.37
Notes:
