Webb Wheel Drum Detail

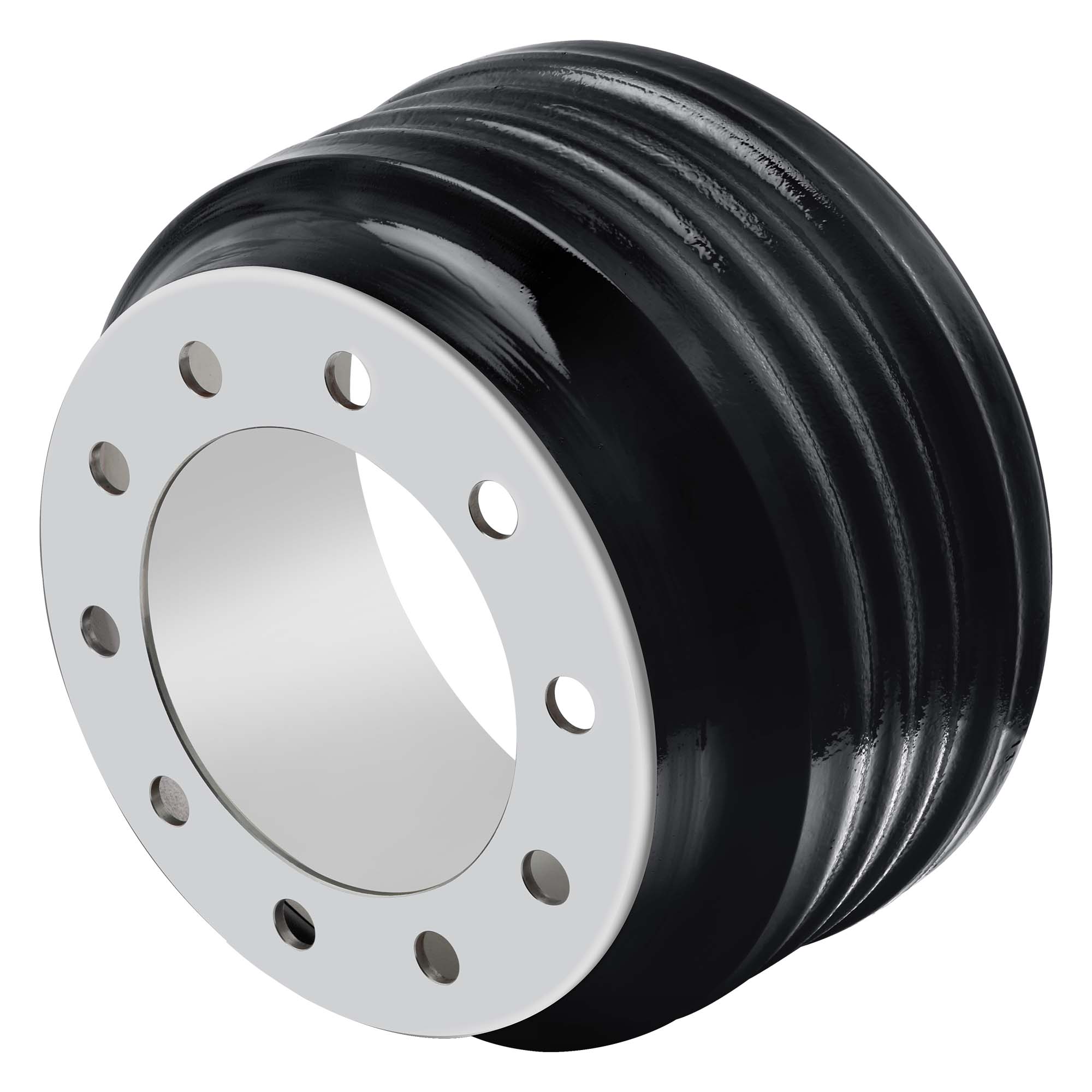

96854B photo

drum art

DRUM INFORMATION
Drum Part Number: 96854B
Weight: 100
Brake Shoe Width: 8.62
Back Plate Thickness: 0.25
Drum Type:
K photo
Mount: Outboard
Brake Surface Diameter: 16.50
Overall Depth: 11.21
Brake Surface Flat: 9.1
Pilot Diameter: 8.78
Bolt Circle Diameter: 11.25
Bolt Hole (Number): 10
Bolt Hole Size: 1
Maximum Wear Diameter: 16.62
Notes: Webb Steel Shell Brake Drum
