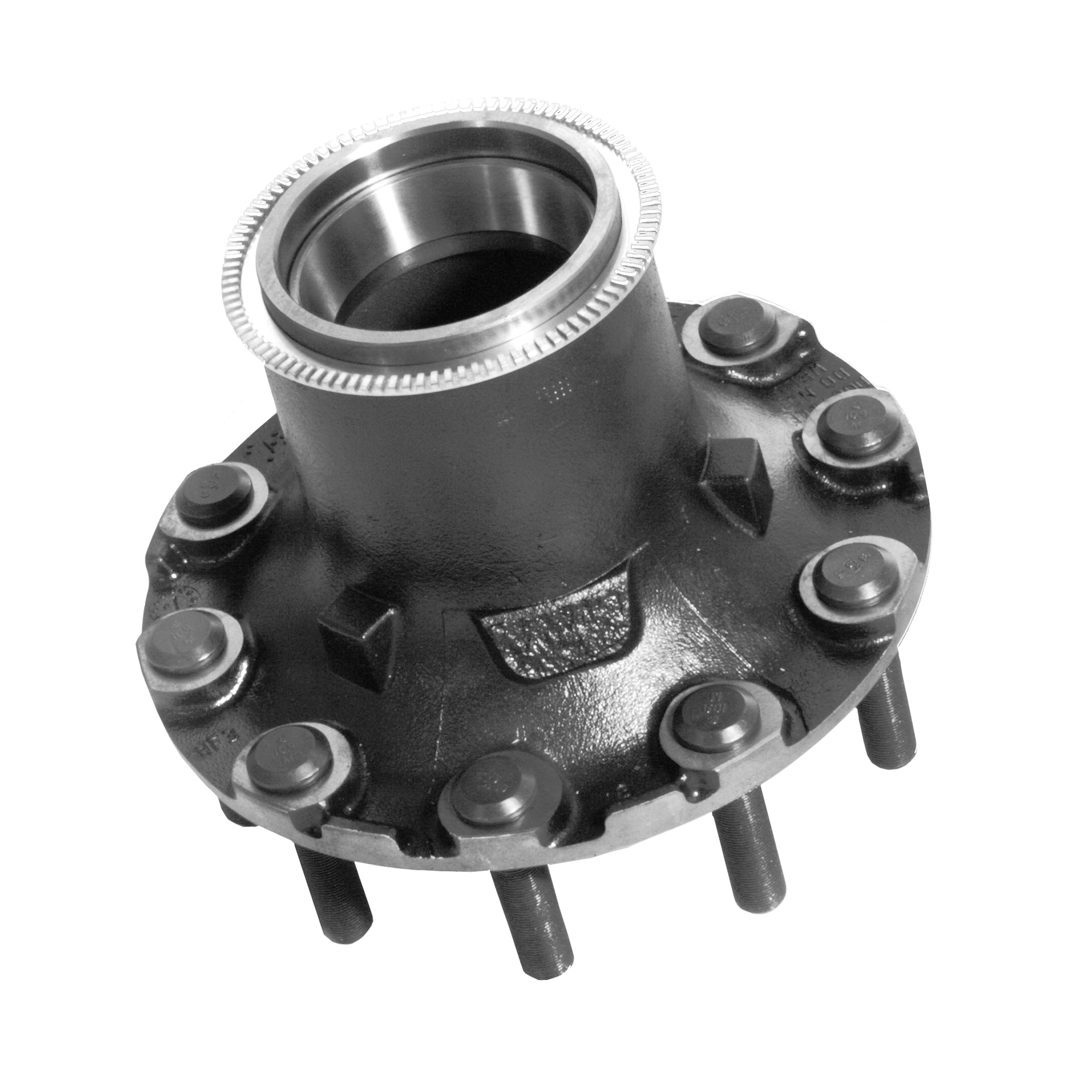

10 Stud Hub with 11.25 (285.75mm) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud
Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thick
5.44" offset. Hubcap not available from Webb
HUB INFORMATION Part Number: 25201--3T
Hub Number: 2520
Description: 10 Stud Hub w/11.25 (285.75mm) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud
Hub Material: Cast
Mounting Type: FN
Drum Type: Outboard
Disc Wheel: Aluminum (Single)
Wheel Stud: 101162
Stud Stand Out: 2.69
ABS Ring: 51053
Drum Options: 65545B, 65153B, 61950B, 65163B, 65179B
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: M22 x 1.5MM Serrated Stud
Outer Bearing Cup: 3720
Outer Bearing Cone: 3782
Inner Bearing Cup: HM212011
Inner Bearing Cone: HM212047 or HM212049 or HM212049X
Webb Axle Group: 11
Cup Code: 1
Notes: OEM & AFM Part Number
5.44" offset. Hubcap not available from Webb
Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness
Hubcap not available from Webb

AXLE MANUFACTURER
AXLE MANUFACTURERArvinMeritor (Rockwell) FF-931, FF-941, FF-942, FF-943, FF-944, FF-961, FG-900, FG-931, FG-941, FG-942, FG-943, MFS-13, MFS-14
Dana Spicer (Eaton)D-22, K-22
WestportF3W-1600, F3W-1800/2000, F3W-1800D/2000, F6W-1600
DRUM OPTIONSClick on Drum Part Numbers for More Drum Information
Drum/Rotor Number | Brake Size | Notes |
61950B | 6.00 | 0.50 Back Plate Thickness Approved for 19.5 disc wheels |
65153B | 5.00 | 0.50 Back Plate Thickness |
65163B | 5.00 | 0.62 Back Plate Thickness |
65179B | 6.00 | 0.50 Back Plate Thickness |
65545B | 4.00 | 0.50 Back Plate Thickness |
FLANGE MOUNT (FN) INFORMATIONDisc Wheel: Aluminum
Tire Application: Single
Total Disc Wheel Thickness: .84 to 1.00
Drum Type: Cast
Right Hand Stud: 101162
Stud Color: Black
Stud Standout: 3.09
Order Code: 3
